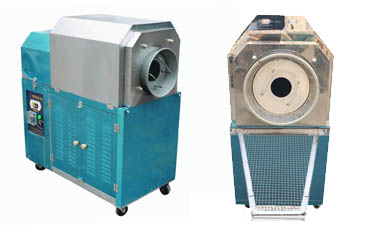

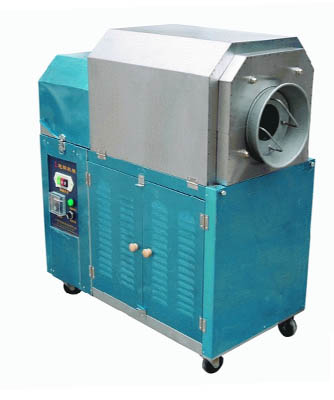

KZ-50W Penaut Roasting Machine

KZ-50W roasting machine is a kind of new multi-functional and energy-saving roasting machine series production of our company. There are three different heating methods: coal heating, electric heating and gas heating. Suitable for processing all kinds of dried fruits and nuts, such as peanuts, chestnuts, melon seeds, pine nuts, almonds, beans, sesame, soybeans, rice and so on. Applicable for fixed sales in the major shopping malls, supermarkets, food stores and other densely populated places.

Product features of roasting machine:

Model:50w
Heating:9.5kw
Capacity:25kg
Size:1250*800*1560

Characteristics of roasting machine:

1.The roasting machine adopts unique horizontal drum structure with uniform heating and good sealing. The structure has been improved that the back cover can be opened. Therefore, maintenance and repair becomes very convenient.
2. The roasting machine with gas heating is equipped with energy-saving stove exclusively, which can be used to regulate firepower. The roasting machine with electric heating has temperature control to adjust the temperature.
3. The outer interlayer of the drum uses quality asbestos as insulation materials with high thermal efficiency. It can meet the needs of all kinds of roasted seeds and nuts temperature. The food roasted are with good taste. It saves time and electricity at the same time.
4. In the roasting process, seeds and nuts roasted in the drum is nonstick. Taking roasted food out of the drum is convenient as long as press the switch without artificial separation.

Methods of using KZ-50W roasting machine:

1. electric heating type roasting machine
1). Please check the connection and insulation of the roasting machine before use. The body shell must connect the ground wire first, then plug in the power supply.
2). Remove the sealing cover in front of the drum by rotating. After filling the drum with food, install the sealing cover. Then turn on the switch of the motor and the heating switch. Set the temperature for roasting. The heating temperature can be adjusted through the temperature controller.
3). When roasting is completed, turn off the heating switch and the motor switch in turn. Install a sieve in the opening of the drum and remove the sealing cover. Turn on the reverse switch of the motor, the food would out of the drum automatically and separated through the sieve.The food is automatically out of the pot and over the sieve.
4). After use of the roasting machine, the operator must check whether the power has been turned off before leave.

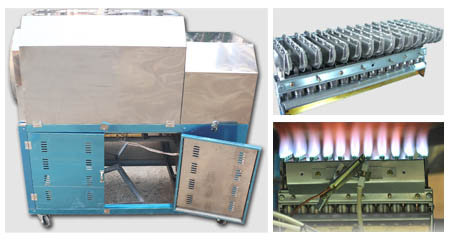

2. liquefied gas heating type roasting machine
1). Please check the connection and insulation of the roasting machine before use. The body shell must connect the safe ground wire.
2). Install low-pressure valve in the liquid gas storage tank and connect the hose, then connect the power.
3). Remove the sealing cover in front of the drum by rotating. After filling the drum with food, install the sealing cover again. You need to turn on the switch of the motor to rotate first, and then open the valve of the gas tank and light the fire to start roasting. Adjust the gas to control the fire.
4). When roasting is completed, close the valve of liquid gas storage tank and turn off the switch of the motor of roasting machine. Install a sieve in the opening of the drum and remove the sealing cover. Turn on the reverse switch of the motor, the food would out of the drum automatically and separated through the sieve.
5). After use of the roasting machine, the operator must check whether the gas supply has been closed and the power supply has been cut off before leave.

Note:

1 After receiving the roasting machine, users should check the insulation state before testing the machine. Then install the ground wires. A certain gap should be left around the equipment.
2 For liquefied gas heating type, the joints and valves shall not leak gas in operation. In order to ensure the safety of personnel, air pipes must not close to the heat source, anddangerous goods must not be stored around the pipes in order to avoid danger. After use of the roasting machine, shut down the power supply.
3 Electric heating type roasting machine can be connected to three-phase electric (380V) and single-phase electric (220V), power supply line must be greater than 6 square meters of copper core wire. The three-phase electric power must be connected to the zero line, otherwise the motor will be damaged or do not work.
4. When operating the switch of the motor, the operator should dial the switch to the stop position when the switch is in clockwise position, then dial it to reverse position after 2 seconds, otherwise it will affect the motor's service life seriously .
5 The motor of the roasting machine needs to be lubricated regularly.
